Description
TECHNICAL SPECIFICATIONS:

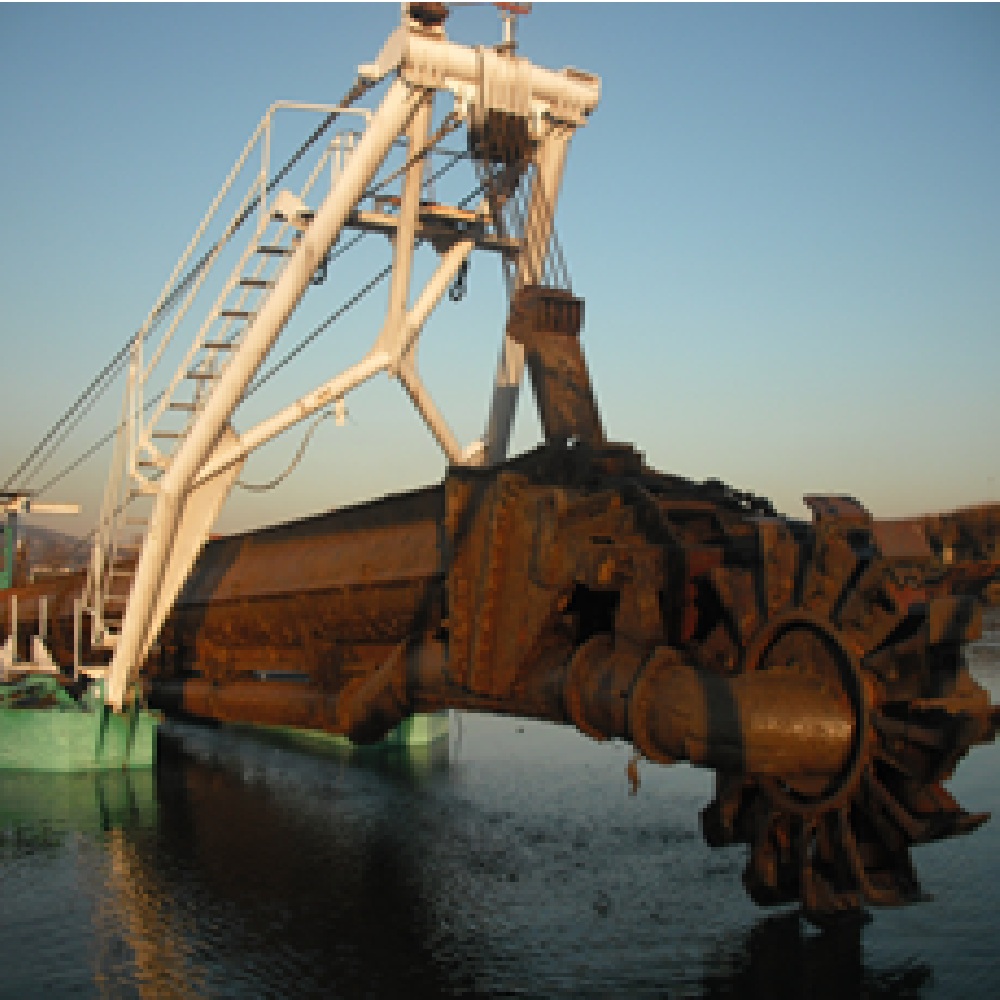

CUTTER WHEEL DREDGER ID 350 EDOF COMPLETE WITH ON-LINE TRANSFORMER FROM 22000 TO 380/660 600 ml MARINO ELECTRIC CABLE
| Information | CWD ID350 EDOF |
| Lenght: m. | 34,62 |
| Overall width: m. | 5,65 |
| Overall length: m. | 45 |
| Draught m. | 0,9 |
| Max. Height of Structures m. | 6,5 |
| Max dredging depth: m. | 20 |
| Max distance of the horizontal discharge: m. ab. | 1600 |
| Diameter of the suction pipe: mm. | 400 |
| Diameter of the delivery pipe: mm. | 350 |
| Total installed Power about: Kw. | 760 |
| Power to the Cutter Kw. | 90 |
| Max. absorption of the pump: Kw. | 550 |
| Max mixture delivery: mc/h | 2100 |
| Spud Carriage | Optional Brand New |
| Anchoor Booms | Optional Brand New |
